The Equipment consists of a SS-316 Conical
Bottom Tank of requisite capacity, housed with Top-Bottom Jet SprayMechanism

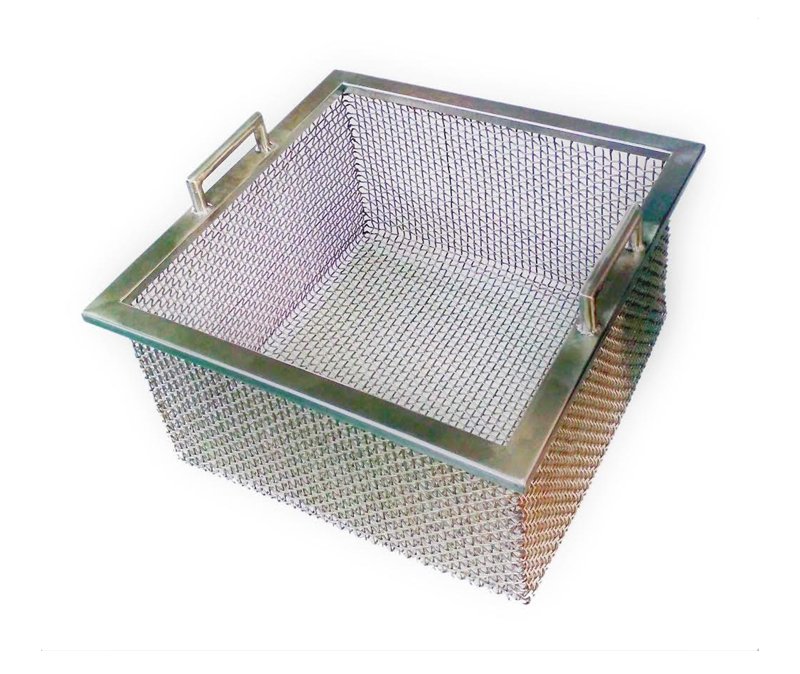

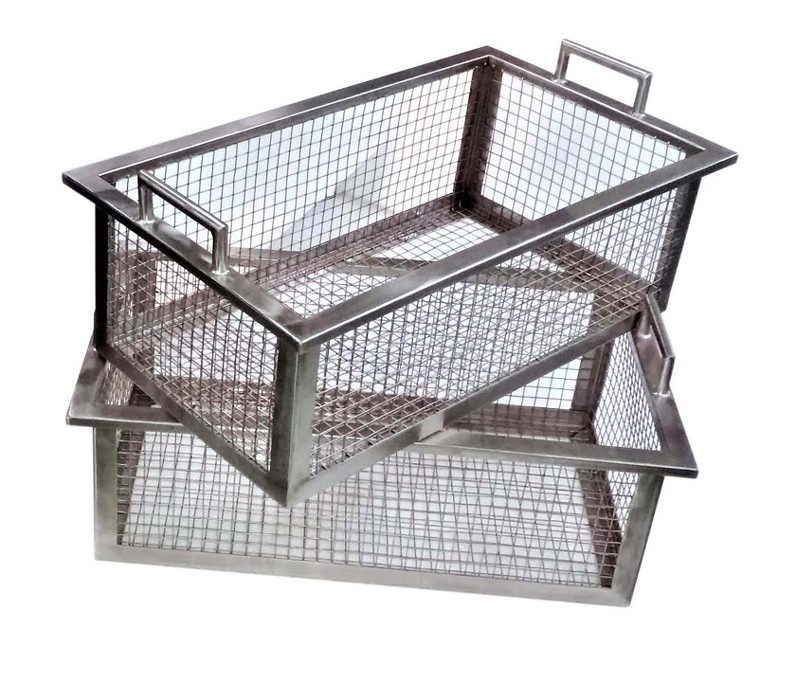

for efficiently washing, two SS-316 perforated Grid baskets which are used
one by one in the washingsystem. The basket been designed so that two
persons can easily lift the tray with vegetables for washing,removing and
further loading into the trays.Product required to be washed is to be
pre-washed to remove dust & mud, after pre-wash it can be moved
toVEGWASH-500 system where Ozonated water is sprayed on the vegetables with
a Wall mounted Ozonegenerator & its Control panel, the water is
recirculated in the system and continuously Ozone is added in everycycle.
Depending upon the product quality the process of washing can be between
5-15 min.Once the water becomes dirty it can be transferred to the pre-wash,
and fresh water can be refilled in theVEGWASH System. Injection & Spray
of Ozonated water mechanism will consist of a Booster Pump, VenturyInjector
& Static Mixer, after static mixer the water will be spread on to the
fruits by existing nozzles.
High Concentration Ozone for effective sterilization*Long life, Micro
Controller based system design*Kills all types of bacteria, virus or
pathogens*Setting of time by Electronic timer*Various built in protection
for safe & long life of reliable operation*Cyclic timing operation on
request*Sterilization of vegetables, fruits, fishes &
meat*Detoxification & Pesticide disintegration in vegetables*Lesser
water Consumption without use of any chemicals.*Does not give load to the
ETP or waste water treatment plants

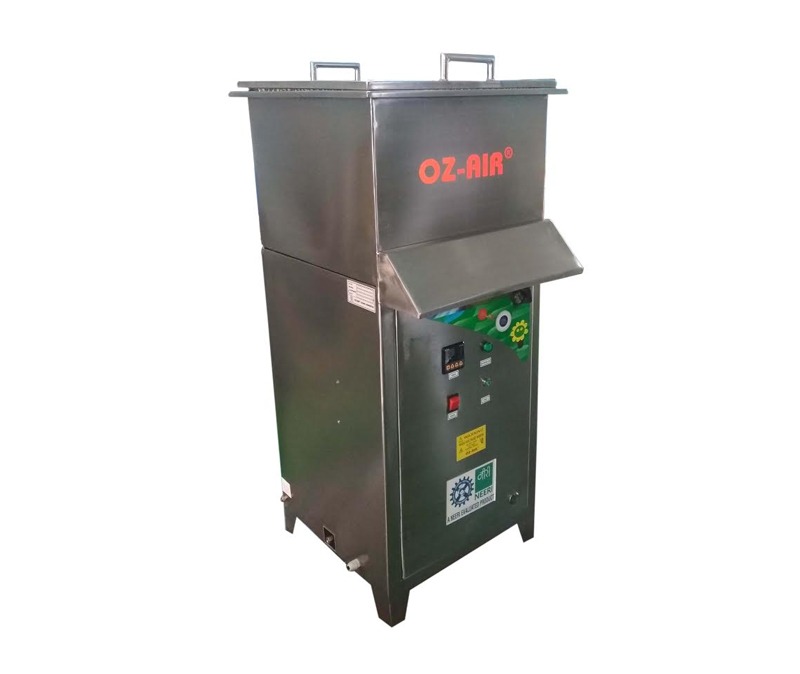

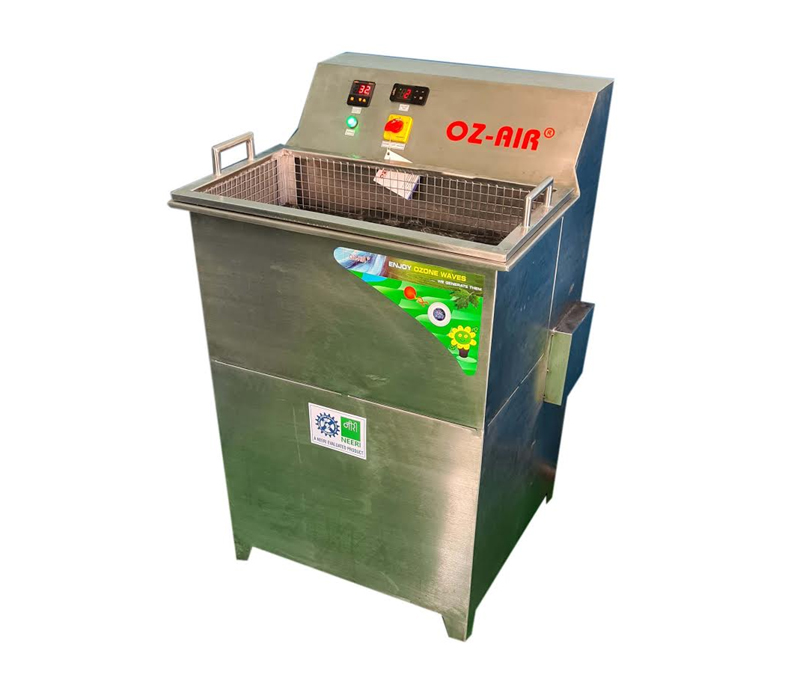

OZ-AIR VEGWASH-500
Water Storage capacity: 250-500 lit* Qty. of Product washed in 1 cycle :
App. 100-150 kg''s* Process of Washing : Strong Ozonated water* Time
required for 1 Wash Cycle : 10-15 Min (may be longer depending Upon
Product)* Method of Injection : Pressure Injection* Connected Load : 1.5 KW,
220 VAC* Power Consumption : 100-120 W/ Cycle* Space requirement : 1200 X
750 X 1000 (in mm)* OZ-AIR VEGWASH-500 System is equipped with* SS-316 Wash
Tank of 500 Lit Capacity* SS-316 Perforated Grid Basket : 2 No.* Water
Recirculating & Ozone Mixing pump* Ozone generator of Suitable Capacity*
Bottom & Top Water Jet Nozzles* Water recirculating rate : 1.5m3/hr*
Pressure of Water : 2.5-3.0 kg/cm2* Water Can be re-used for 5-10 Cycles
Depending upon the Load
