Ozone Generators

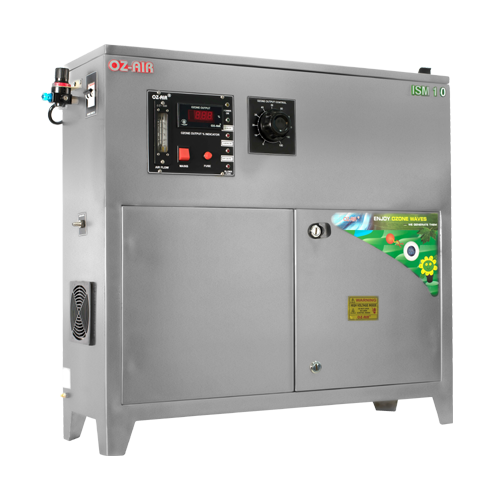

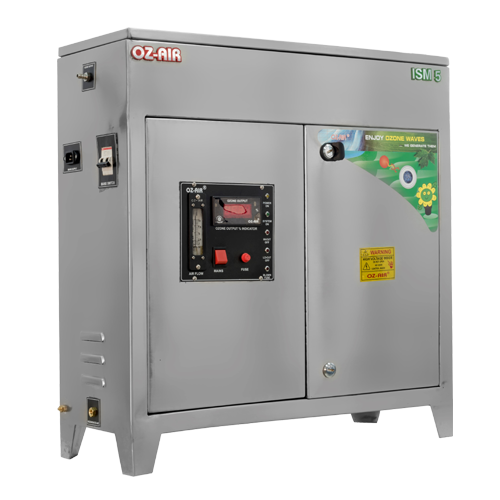

ISM Series
The OZ-AIR® ISM Series of ozone generators are medium sized air-cooled units specifically designed for industrial applications incorporating microprocessor based control system to ensure a smooth and maintenance free operation. It features several function indicators, flowmeter, variable ozone output from 5 to 100% and Voltage Hi - Low cutoff. Additional protections and interlocks ensure perfect operation and protection of the ozone generator.
How it works
Ozone is produced when dry air or oxygen gas is passed through the dielectrics of the ozone generating module. The ozone generating module is powered by a high voltage / high frequency board mounted inside the ozone generator. The board is designed for intermittent or continuous operation. The ozone generating module is cooled using cooling fans which brings fresh air from one side and throws the heated air from the other side, which helps in keeping the modules under normal temperature and ensures efficient operation of the ozone generator.




Main Features
  • Production rates from 6 gm/hr to 20 gm/hr from dry air
  • Highly concentrated ozone for effective and efficient application suitability
  • Advanced technology featuring microprocessor based control system
  • Digital Ozone output in gm/hr and fault diagnostics
  • Illuminated switches indicating ozone production and faults
  • High voltage / high frequency based power supply
  • Robust industrial design and quality for reliability and long life
  • Ozone output regulation from 5 - 100%
  • Full twelve month warranty and technical backup facilities
Series Highlights
  • Safe, quiet and energy efficient
  • Advanced technology
  • Fully assembled and tested
  • High performance
  • High ozone concentration
  • Low specific power
  • User friendly
  • Easily integratable
  • Low service requirement
Applications
  • Bottled water disinfection
  • Portable water treatment
  • Swimming pool water treatment
  • Industrial processes
  • Waste water
  • Aquaculture
  • Agriculture
Technical Specifications
ISM Series of Ozone Generators (Without Feed Gas System)

Models Ozone Production gm/hr Module Pressure Kg/cm2 Feed Gas Power (Watts) Dimensions
L X W X H (mm)
Weight (Kg)
Dry Air Oxygen Air Oxygen Oxygen LPM Air LPM
OZ-AIR® ISM ISM 6 OXY 4.2 6.0 0.70 0.40 3.0 7.5 140 600 X 700 X 250 45
OZ-AIR® ISM 8 OXY 4.8 8.0 0.70 0.40 3.0 10.0 185 600 X 700 X 250 48
OZ-AIR® ISM 10 OXY 6.0 10.0 0.80 0.50 5.0 12.0 205 600 X 800 X 250 52
OZ-AIR® ISM 12 OXY 8.4 12.0 0.80 0.50 5.0 15.0 225 700 X 800 X 250 55
OZ-AIR® ISM 15 OXY 9.0 15.0 0.80 0.50 5.0 18.0 250 700 X 800 X 250 60
OZ-AIR® ISM 20 OXY 12.0 20.0 0.80 0.55 5.0 20.0 320 800 X 850 X 260 65

ISM series of Ozone Generators (With Inbuilt Oxygen Enriched Feed Gas System)

Models Ozone Production
gm/hr
Air Feed
LPM
Power
(Watts)
Dimensions
L X W X H (mm)
Weight
(Kg)
OZ-AIR® ISM 6 6.0 7.5 510 670 X 650 X 260 55
OZ-AIR® ISM 8 8.0 10.0 535 770 X 650 X 260 58
OZ-AIR® ISM 10 10.0 12.0 555 770 X 650 X 260 60
OZ-AIR® ISM 12 12.0 15.0 585 800 X 750 X 350 62
OZ-AIR® ISM 15 15.0 18.0 600 800 X 750 X 350 65
OZ-AIR® ISM 20 20.0 20.0 685 800 X 800 X 500 75
