Ozone Generators
IMD Series
The OZ-AIR® IMD Series of ozone generators are designed specifically for medium sized industrial applications incorporating microprocessor based control system to ensure a smooth and maintenance free operation. This series includes the latest technology availaible to ensure continuous opeartion at full load in industrial environments. It features several function indicators, flowmeter, process related control equipments and interconnections, variable ozone output from 5 to 100%, Voltage Hi - Low cutoff and dditional protections and interlocks to ensure perfect operation and protection of the ozone generator for years of trouble free operation. The control system ensures flexible operation and allows integration into all types of plant concepts.
How it works
Ozone, the triatomic form of molecule, is generated by recombining oxygen atoms with oxygen molecules. This process takes place when dry air or oxygen is allowed to pass through the dielectrics of the ozone generating module.The ozone generating module is powered using a high voltage / high frequency board mounted inside the ozone generator. The board is designed for continuous operation on full load under harsh industrial conditions. The ozone generating module is cooled by either using air or cooling water depending upon the application and nature of effectiveness and effeciency required. The ozone thus produced is highly concentrated to meet application suitability.




Main Features
  • Production rates from 12 gm/hr to 30 gm/hr from dry air
  • Production rates from 20 gm/hr to 50 gm/hr from oxygen
  • Highly concentrated ozone for effective and efficient application suitability
  • Advanced technology featuring microprocessor based control system
  • Digital Ozone output in gm/hr and fault diagnostics
  • Illuminated switches indicating ozone production and faults
  • High voltage / high frequency based power supply
  • Robust industrial design and quality for reliability and long life
  • Ozone output regulation from 5 - 100%
  • Full twelve month warranty and technical backup facilities
Series Highlights
  • Safe, quiet and energy efficient
  • Advanced technology
  • Fully assembled and tested
  • High performance
  • High ozone concentration
  • Low specific power
  • User friendly
  • Easily integratable
  • Low service requirement
Applications
  • Bottled water disinfection
  • Portable water treatment
  • Swimming pool water treatment
  • Industrial processes
  • Lake Remediation
  • Cooling towers
  • Waste water
  • Hydroponics
  • Aquaculture
  • Agriculture
  • Ozonolysis
Technical Specifications
IMD Series of Ozone Generators (Without Feed Gas System)

Models Ozone Production gm/hr Module Pressure Kg/cm2 Feed Gas Power (Watts) Dimensions
L X W X H (mm)		 Weight (Kg)
Dry Air Oxygen Air Oxygen Oxygen LPM Air LPM
OZ-AIR® IMD 20 OXY 12.0 20.0 0.80 0.55 5.0 10 320 700 X 850 X 250 65
OZ-AIR® IMD 25 OXY 15.0 25.0 1.00 0.55 6.0 12 400 700 X 850 X 250 70
OZ-AIR® IMD 30 OXY 18.0 30.0 1.00 0.60 7.0 15 480 700 X 850 X 250 73
OZ-AIR® IMD 40 OXY 24.0 40.0 1.10 0.60 8.0 18 640 800 X 850 X 260 75
OZ-AIR® IMD 50 OXY 30.0 50.0 1.10 0.70 10.0 20 750 800 X 850 X 260 78

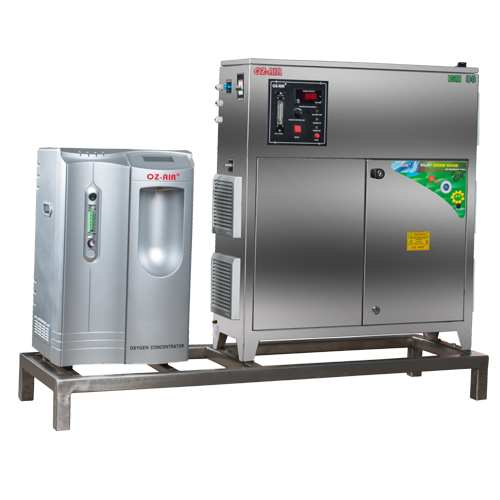

IMD series of Ozone Generators (With Inbuilt Oxygen Enriched Feed Gas System)

Models Ozone Production
gm/hr		 Air Feed
LPM		 Power
(Watts)		 Dimensions
L X W X H (mm)		 Weight
(Kg)
OZ-AIR® IMD 20 20.0 10 675 800 X 800 X 500 78
OZ-AIR® IMD 25 25.0 12 740 800 X 800 X 500 95
OZ-AIR® IMD 30 30.0 15 810 800 X 800 X 500 110
OZ-AIR® IMD 40 40.0 18 940 800 X 800 X 500 136
OZ-AIR® IMD 50 50.0 20 1070 950 X 800 X 500 162
